SLA-LT-5J42C4NSNNS6 level transmitter

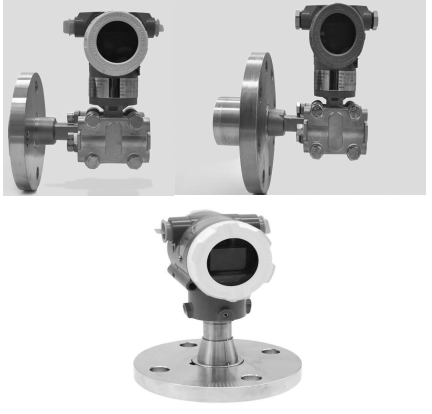

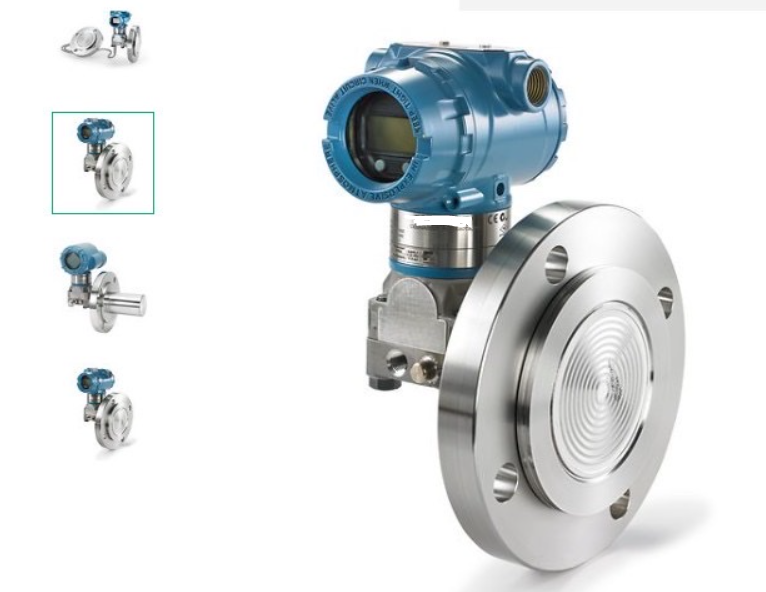

Flush mounted Diaphragm LT level transmitter
Style Code:
SLA-LT-5J42C4NSNNS6
Range: 1~100kPa
Accuracy:0.075%
Output:4-20mA with Hart
G1/2 electric connection
Process Connection Size: JIS10
DN80/DN100/DN150... flange connection
Hastelloy C276 diaphragm

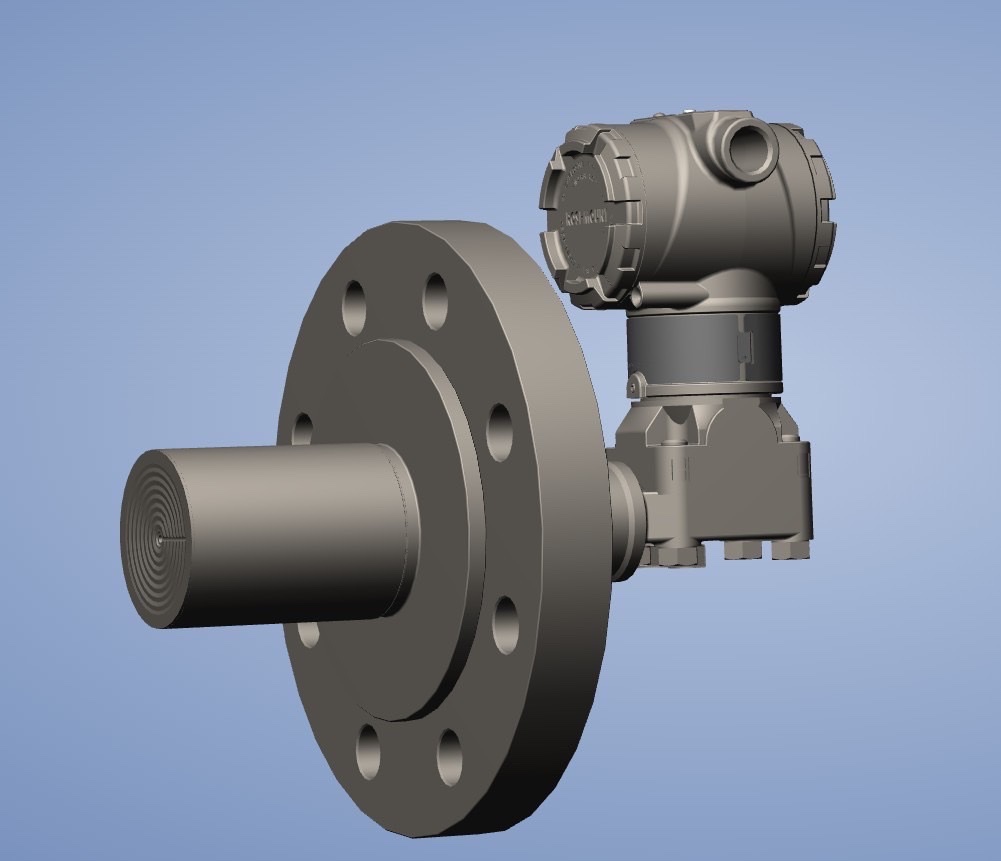

Insertion length: 100mm
Sanitary filling oil / Silicone
